Plumbing & Drainage Accessories

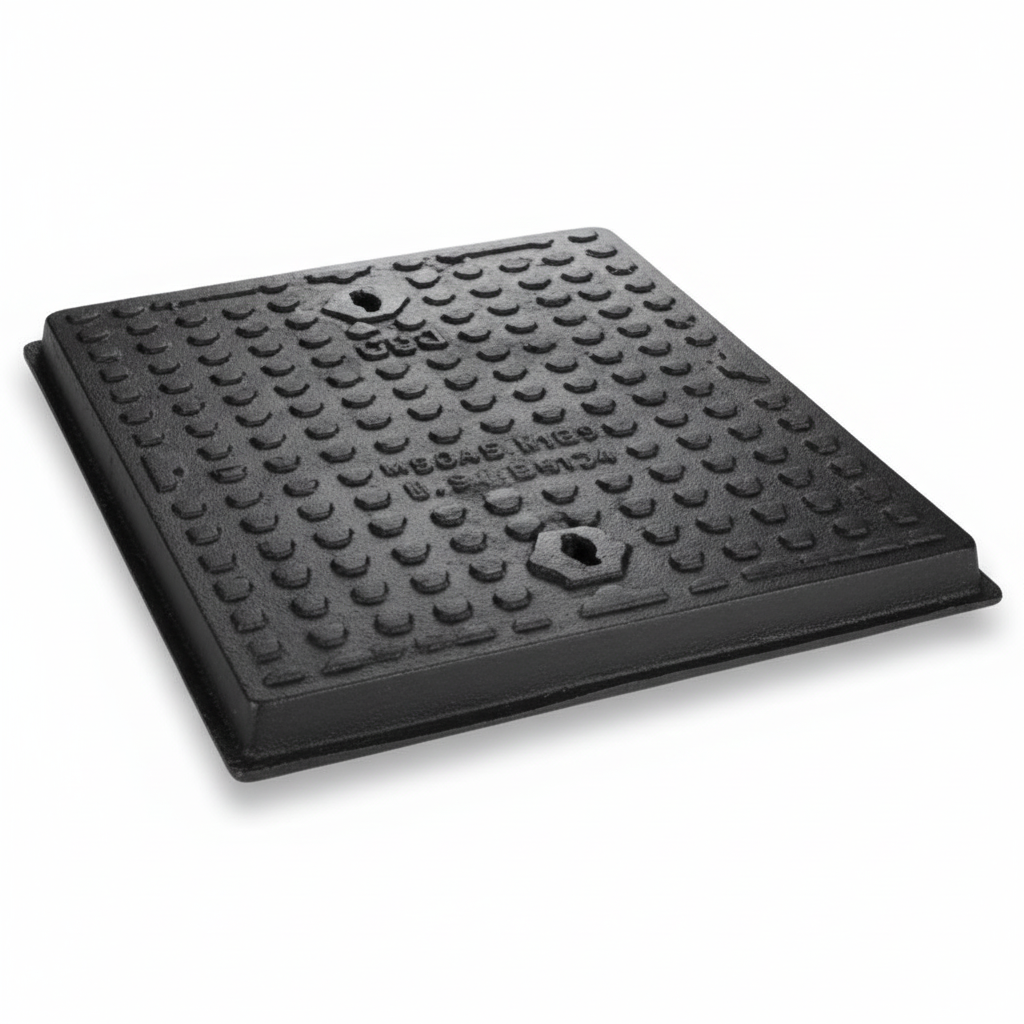

Manhole
Type Persegi
Saringan Lantai Minimalis & Efisiensi

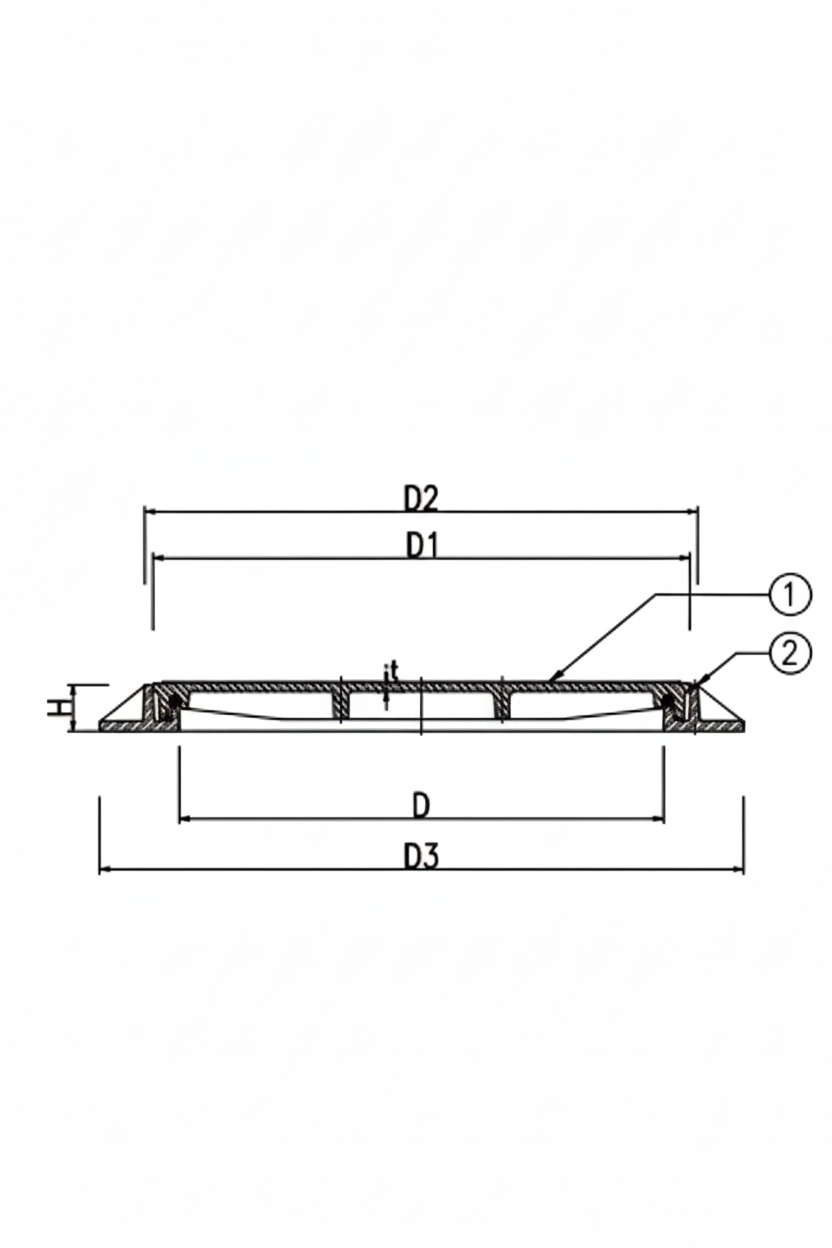

Technical Diagram
Spesifikasi
| Nama | Bahan |
|---|---|
| Tutup | Cast Iron |
| Frame | Cast Iron |
Dimensi (mm)
| D | D1 | D2 | D3 | t | H |
|---|---|---|---|---|---|
| 500 | 550 | 567 | 610 | 9 | 50 |
| 600 | 650 | 667 | 710 | 10 | 50 |
| 700 | 770 | 797 | 815 | 13 | 55 |
| 750 | 820 | 847 | 868 | 14 | 60 |
| 800 | 870 | 893 | 930 | 15 | 60 |
| 900 | 970 | 990 | 1050 | 17 | 65 |
| 1000 | 1100 | 1125 | 1150 | 19 | 65 |
Keunggulan
Manhole cover digunakan untuk menutup saluran gorong – gorong (Trotoar) atau penutup septic tank
